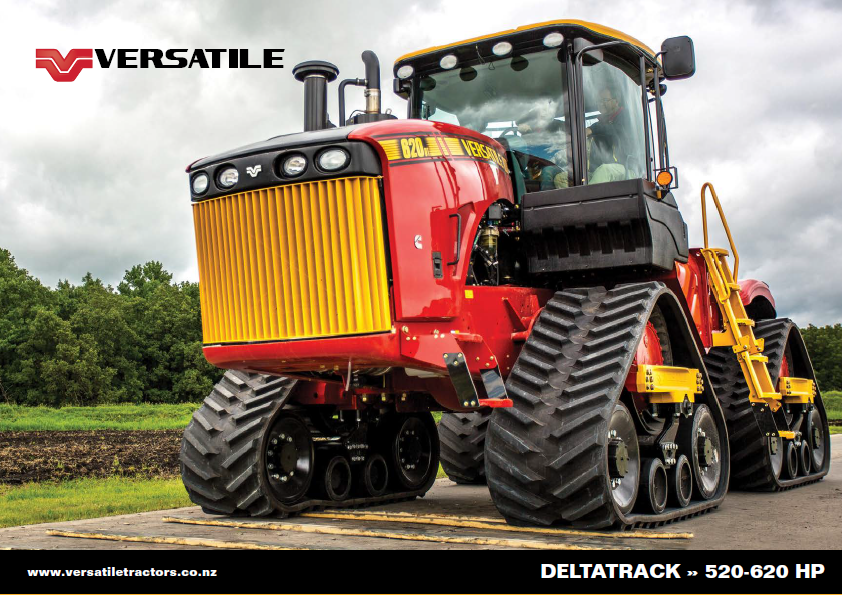

DeltaTrack Models 520 | 620
The Versatile DeltaTrack is a fully integrated purpose-built four track system from Versatile. Available in four models 460DT, 520DT, 570DT and 620DT, the DeltaTrack exceeds the performance and durability of existing track systems. The track systems uses the proven Versatile outboard planetary system to maximize power to the ground. Four independent tracks maintain balance and provide constant contact with the ground. The DeltaTrack is built using the most advanced track design in the agriculture industry and features proven Cummins engine technology, rugged CAT® powershift transmissions, and legendary Versatile reliability and serviceability
The Versatile DeltaTrack was designed to exceed the performance of existing agricultural track machines. Combining a powerful 15-litre Cummins engine and a smooth shifting 16 x 4 CAT powershift transmission, the DeltaTrack’s powertrain outperforms the competition. Designed as a fully integrated track machine the DeltaTrack is the most advanced track tractor on the market today.
QSX15 Cummins Engine
The DeltaTrack uses a responsive QSX15 Cummins engine. The unmatched engine displacement and Cummins technology help produce excellent torque response and pulling power.

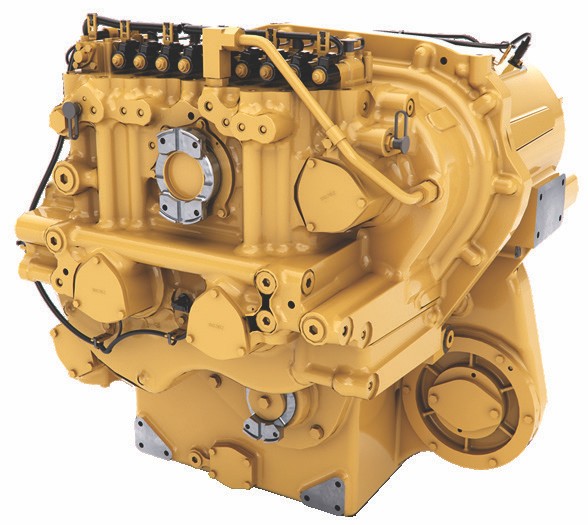

The DeltaTrack uses the heavy duty CAT TA22 powershift transmission. 16 forward and four reverse gears shift seamlessly under load to create a more comfortable operating environment. A large selection of working gears is available to match almost any application. The TA22 is fully programmable for autoshift and speed matching. Capable of road speeds up to 22 mph (35 km/hr), the DeltaTrack moves between fields efficiently.

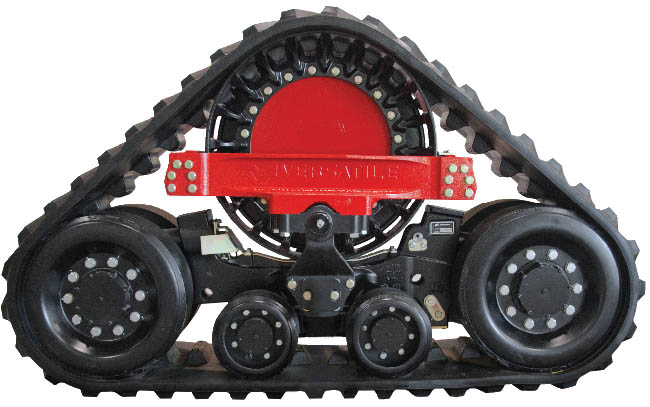

The DeltaTrack uses a positive drive system to reduced wear, friction and heat. Track slippage is eliminated by interlocking track lugs into the drive wheel. The DeltaTrack keeps 4.6 lugs engaged with the drive wheel at all times to eliminate slippage between the track and drive wheel. The DeltaTrack uses the largest drive lugs (8-1/2") in the industry to maximize operating life.
A large 80.7° single piece cast drive sprocket provides a larger wrap angle than competitive track units to help increase track life.
The large idler wheels used on the DeltaTrack improve the approach angle to reduce the risk of “submarining” in muddy conditions. The large idler wheels and track angle help reduce the tracks horsepower requirements.
The large midrollers on the DeltaTrack system are not directly inline with axle or drive system components to improve the ride and service life of the tractor. Polyurethane coating dramatically reduces midroller wear and maintenance requirements compared to competitive rubber midrollers.
IMPROVED STANDARD CAB OFFERING

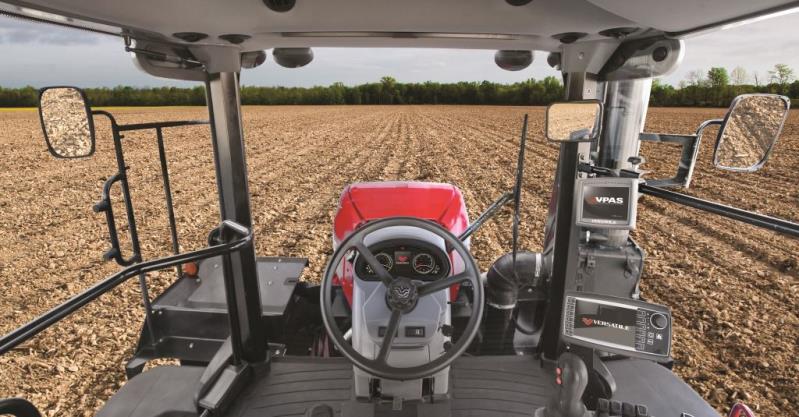

The DeltaTrack takes advantage of the class leading Versatile HQ Cab. With over 85 sq. ft. of viewable window glass the HQ Cab provides a panoramic view of your fields. A seat mounted right-hand console gives you fingertip control over the entire tractor to help reduce operator fatigue. A semi-active air-ride suspension seat is standard and the HQ Cab also offers a large training seat.
The new Deluxe Cab is a high-end full-featured cab that provides the operator with every imaginable comfort for long working days. A semi-active air-ride suspension seat and the training seat are both standard in this configuration. In addition to the connectivity options available in the standard cab, the Deluxe Cab has an 110v AC power outlet and a 5-volt integrated USB port. A subwoofer is also standard to improve sound quality in the cab.
Large multi-directional vents optimize comfort and help create an ideal cab environment.
A conveniently located stereo and high quality sound system help make long days in the cab more enjoyable.
Four cup holders are standard. The cab also has coat hooks to keep the cab clean and organized.
The operator seat has a 104° swivel range to maximize visibility when towing implements. Air ride suspension and a heated seat are standard in the Deluxe Cab.
520 | 620 DeltaTrack
Cummins QSX 15 Tier3
15 Litre Displacement
VE 520 Peak 520 HP @ 1800 rpm
VE 620 Peak 620 HP @ 1800 rpm
| Caterpillar TA22 full powershift 40km/hr
16 Forward Speeds / 4 Reverse Speeds
Auto Shift, Shuttle, Pulse or Sequential Shift
|AXLES & STEERING
Articulated type Hydrostatic Steering
90mm Steering Cylinders
Dual Front/Rear Axle Mounted
Hand Operated Park Brake
Deluxe Cab Package
Largest cab in the industry (4.97 cu. m)
Monitor Bracket/ Power Bar
Tinted Safety Glass
Overall Height 3,810 mm
Wheelbase 3,886 mm
Operating Weight 27,805 kg
Fuel Capacity 1,800 Litres
||30" Agricultural Tracks
2 years or Max 2000 hours from Installation
Plus extra 3rd year on Transmission
See brochure for full specifications
